This H Beam I Beam Profile Steel Structure Submerged Welding Machine is developed by our company.
The structure is simple and reasonable.
The main drive system adopts AC frequency conversion motor for synchronous speed regulation, which can ensure the stability of the machine speed.
The machine is equipped with an arc guide device to ensure accurate welding position.

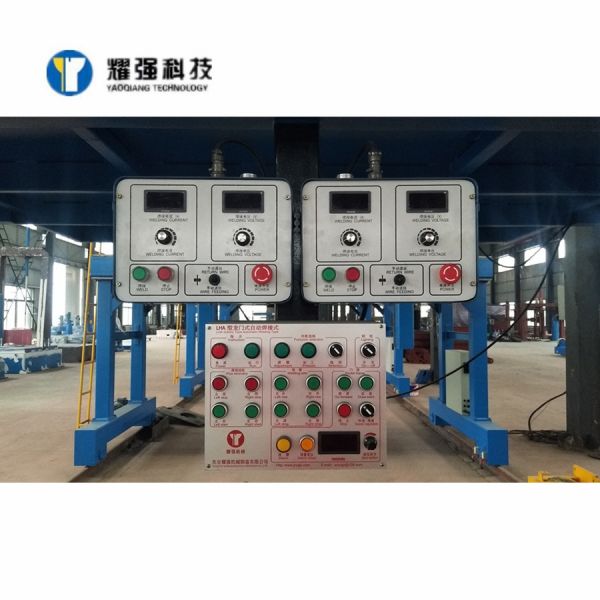

The welding control and the gantry control are integrated, and the operation is simpler and more reliable.
The welding arm wiring adopts drag chain, which makes the machine beautiful, reliable and safe.
| Model | LHA |
| Height of web(mm) | 200-2000 |
| Height of flange(mm) | 200-800 |
| Length of H beam | 4000-15000(can be designed as required) |
| Welder model | MZ-1000 SAW welding power Wire feeding machine 2 sets |
| Welding form | ARC |
| Welding speed(mm/min) | 150-2500 |
| Rail distance(mm) | 1400 |
| Power(kw) | 13(welder is exclude) |
| Voltage | 380V 3PH 50HZ(other voltage can customized) |
Features of machine:
1. There are two models for h beam submerged arc welding machine, gantry automatic welding machine and T gantry automatic welding machine.
2. It adopts AC frequency conversion control, stable operation and fast operation speed.
3. The arc guiding mechanism used for seam tracking is a three-axis system to ensure the accuracy of alignment.
4. The host and welding machine adopt an integrated control structure.
5. The host is equipped with an automatic flux recovery system, which is easy to operate and high in efficiency.
6.The gantry automatic welding machine can weld two beams at the same time, and the height of the beam web is not limited by the host.
FAQ:
1.Q:Are you a factory or trading company?
A: We are a factory.
2. Q:What are your payment terms?
A: We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement. Any other questions contact us directly!
3. Q:How about the warranty?
A: There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence
4.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Jiangsu Wuxi(next to Shanghai),China.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
